LGSBuilt › Shelving, Racking & Pallets

Industrial Steel
Storage Systems.

Heavy-duty light gauge steel shelving, warehouse racking, and steel pallets — engineered for commercial and industrial environments. Standard sizes in stock, custom configurations available.

View Product Lines Steel Pallets →
All products available in custom configurations — Standard sizes ship fast. Custom orders to your exact spec. Talk to our team →
3x
Stronger than wood shelving
5t+
Pallet load capacity
100%
Recyclable steel
<1hr
Assembly per bay
LGSBuilt steel pallet open configuration
LGSBuilt — Industrial Steel Storage
Why Steel Storage

Storage Built for the Long Haul

Timber rots. Plastic cracks. Steel doesn't. LGSBuilt's shelving, racking, and pallet systems are cold-formed from high-strength light gauge steel — precision-cut to tolerance, pre-drilled, and ready to assemble without welding or site cutting.

Whether you're outfitting a warehouse, workshop, commercial kitchen, or building site, our steel storage systems are engineered to carry real loads, resist corrosion, and outlast every alternative.

Each system ships as a flat-pack kit with all hardware included. Standard configurations assemble in under an hour per bay — no specialist tools required.

Shelving Systems Warehouse Racking Steel Pallets Steel Blocking Custom Fabrication
Standard Kits

Steel Shelving Systems

Named configurations in standard sizes — designed for warehouses, workshops, and commercial storage. All available in custom widths, depths, and heights.

Shelving
The Stockroom
900mm × 400mm × 1800mm — 3 Tier

Entry-level steel shelving for workshops, garages, and light commercial storage. Three adjustable shelves on a rigid LGS frame. Bolt-together — no welding required.

Shelf Load
150 kg each
Tiers
3 adjustable
Finish
Powder-coated
Assembly
<45 min
Get a Quote
Best Value
The Warehouse
2400mm × 600mm × 2400mm — 5 Tier

Heavy-duty racking for commercial warehouses and distribution environments. Five adjustable levels with beam-and-upright construction for maximum load-bearing performance.

Shelf Load
500 kg each
Tiers
5 adjustable
Bay Width
2400 mm
Assembly
<1 hr / bay
Get a Quote
Long-Span
The Longspan
3600mm × 900mm × 2100mm — 3 Tier

Purpose-built for bulky, long, or oversized items. Wide bays with reinforced intermediate uprights and solid steel shelf panels. Ideal for building materials, timber bundles, and large equipment.

UDL per shelf
900 kg
Bay Span
3600 mm
Shelf Depth
900 mm
Intermediate
2× uprights
Get a Quote
Steel Blocking & Structural Supports
Blocking
C-Section Blocking Pack
Assorted 600–2400mm lengths

Cold-formed C-section steel blocking for structural infill, framing support, and load transfer applications. Pre-punched and ready to install between studs, joists, and beams.

Section
C92 / C152
Steel Grade
G550 Hi-Ten
Coating
Z350 Galv.
Qty
20 pieces / pack
Get a Quote
CONNECTOR KIT
Hardware
Bracket & Connector Kit
Universal LGS Hardware Pack

All the clips, brackets, screws, and connectors needed for LGS shelving and blocking installations. Stainless and galvanised options. Compatible with all LGSBuilt framing profiles.

Bracket Types
L, Z, U, Clip
Fasteners
Tek screws
Material
G550 / 316 SS
Kit Size
50 / 100 / 200 pc
Get a Quote
Steel Pallets

Industrial-Grade Steel Pallets

Cold-formed steel pallets built for heavy industrial loads, harsh environments, and repeated handling cycles. Available in open-deck and closed-deck configurations.

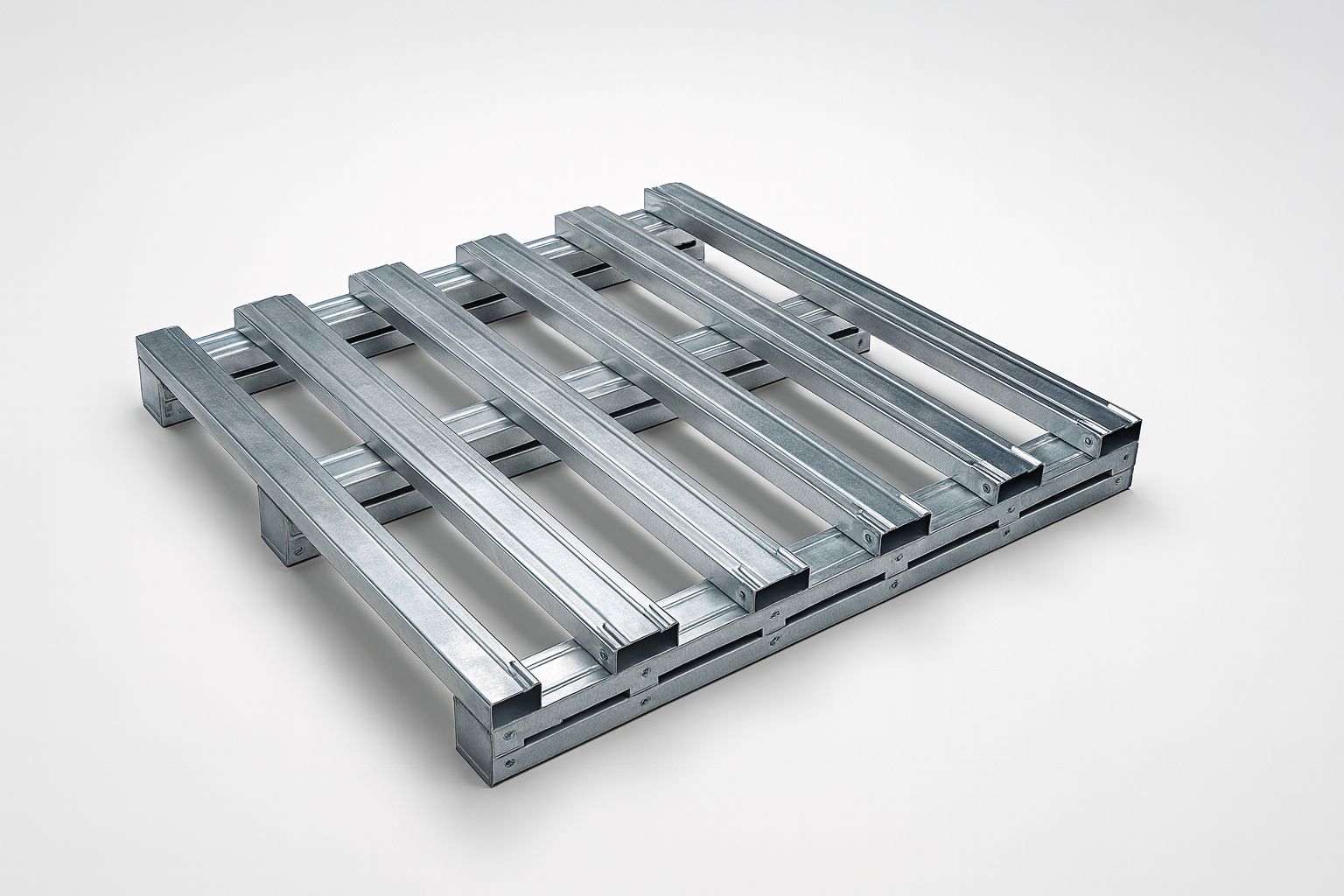

LGSBuilt open-deck steel pallet
Configuration A
Open-Deck Pallet
Optimal airflow and drainage. Ideal for produce, manufacturing, and humid environments.
LGSBuilt closed-deck steel pallet
Configuration B
Closed-Deck Pallet
Maximum surface area for loose goods, small parts, and high-density stacking applications.
5t
Static load capacity
1.5t
Dynamic (forklift) load
1200×1000
Standard footprint (mm)
100%
Recyclable steel
The LGSBuilt Advantage

Why Steel Storage?

Not just stronger — smarter. Here's why engineers and logistics managers choose LGSBuilt steel systems over timber and plastic alternatives.

3× Stronger Than Timber

Cold-formed G550 Hi-Ten steel delivers structural performance that wood simply can't match. No warping, no splitting, no degradation over time.

Fast Assembly

Pre-drilled, pre-cut, and pre-finished. Each bay assembles in under an hour with standard tools. No welding, no site cutting, no specialist trades required.

Zero Maintenance

Z350 galvanised coating and powder-coat finish means no painting, oiling, or treatment — ever. Install it and forget about it for decades.

Fire & Pest Resistant

Steel doesn't burn, doesn't rot, and provides zero nutrition for termites, rodents, or fungi. The obvious choice for food storage, workshops, and high-risk environments.

Fully Adjustable & Scalable

Add bays, change shelf heights, or reconfigure layouts as your operation grows. LGSBuilt systems are modular by design — built for businesses that scale.

100% Recyclable

LGSBuilt steel is made from 70%+ recycled content and is fully recyclable at end of life. Sustainable storage that doesn't compromise on performance.

Technical Specifications

Product Specifications

Standard specifications across the LGSBuilt shelving, racking, and pallet range.

Specification Shelving Systems Warehouse Racking Steel Pallets
Steel Grade G300 LGS G550 Hi-Ten G550 Hi-Ten
Coating Z275 galvanised + powder coat Z350 galvanised + epoxy Z350 hot-dip galvanised
Load per shelf / pallet 150–900 kg (model dependent) 500–1,500 kg per level 5,000 kg static / 1,500 kg dynamic
Standard widths 900 / 1200 / 1800 mm 1800 / 2400 / 3600 mm 1200 × 800 / 1200 × 1000 mm
Height options 900 / 1500 / 1800 / 2100 mm 2100 / 2400 / 3000 mm 150 mm standard deck height
Shelf depth 300 / 400 / 600 mm 600 / 900 / 1200 mm —
Tier options 3 / 4 / 5 / 6 adjustable 4 / 5 / 6 / 7 adjustable Single-deck (stacking capable)
Entry type Single-sided Single / double-entry 4-way forklift entry
Assembly method Bolt-together, no welding Clip-lock + tek screw Pre-assembled or flat-pack
Custom sizes Yes — any dimension Yes — any dimension Yes — any footprint or load rating
Finish options Grey, black, blue, custom RAL Orange, grey, custom RAL Galvanised or epoxy-coated
Lead time (standard) 3–5 business days 5–10 business days 5–10 business days
Lead time (custom) 10–15 business days 15–20 business days 15–20 business days

From Quote to Installed
in Days.

We keep it simple. Specify what you need, get a quote, receive your flat-pack kit, and assemble it in hours — not weeks.

01
Choose Your Configuration

Select from our standard named kits or tell us your dimensions, load requirements, and environment. We'll spec the right system for you.

02
Receive Your Quote

We provide a detailed, itemised quote within 24 hours for standard kits — 48 hours for custom configurations. No hidden costs.

03
Kit Ships Flat-Pack

All components are pre-cut, pre-drilled, and labelled. Your kit ships with a numbered assembly guide and all required fasteners included.

04
Assemble & Load

Most shelving bays assemble in under an hour with two people and basic tools. Pallets arrive pre-assembled and ready for immediate use.

Ready to Build a Better Storage System?

Request a Quote Explore All Products
